average power (RMS power is right out)

2009 December 26 07:53

I used to refer to the "RMS power" of something.  I thought it was a reasonable term and a specific quantity.  Turns out that's not the case.  Here's an article that sort of explains reason that's not true.

Here's my attempt to try to explain the distinction:

The instantaneous electrical power consumed by a device is the product of the voltage across the input (energy per unit charge) times the current flowing (current charges per second).  Multiply those together and you get energy per time, or power (in watts).

If the voltage and current are constant over time, the the power consumed is just the product of the voltage times the current.

If the voltage and current change with time, then the power may (and usually will) change over time.  You calculate power consumed at a given instant by multiply the instantaneous voltage times the instantaneous current at that same instant.  What's often more useful is to calculate the average power used over time.  Mathematically, this involves taking a number of correlated voltage and current samples over a time period, summing the products, and then dividing by the number of samples.  The result is the average power consumed over that period.

Now, there is an important simplification that can be applied ONLY WHEN  the input voltages and current are sinusoidal and IN PHASE.  A weighted voltage and a weighted current can be computed separately, and their product equals the average power drawn. This is simpler to calculate because you're only mutiplying V*I once, not for each moment in time.   These weighted values are called "RMS" values which stands for "root-mean-squared".  RMS is a simplification to voltage and current separately because they're sinusoidal.  There is no "RMS power" calculated; no such thing exists.  It's just "average power".


Hey, it works!

2009 December 26 05:15

I got a turn-by-turn GPS for Christmas, which means that I now have a GPS unit less than 10 years old; I guess it's time for me to join this milennium.  I took it for a test drive today, it works pretty well.  I'm quite pleased.




To do the test I did drove around and made a couple of visits this afternoon.  I stopped by the local aiport, which is always good for the soul (at least it is for mine).

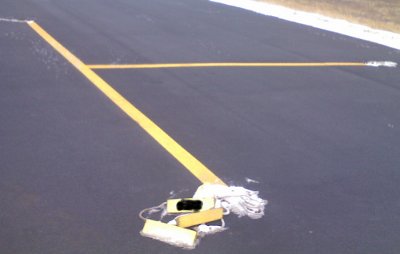

  The parking ramp has been resurfaced recently and the lines repainted, which I take to be a good sign.

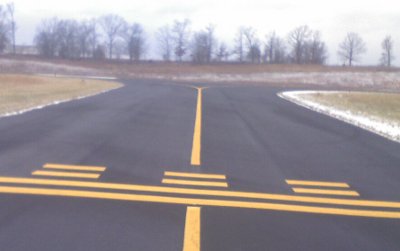

This is a close as I get to the runway unless I'm driving an airplane myself.

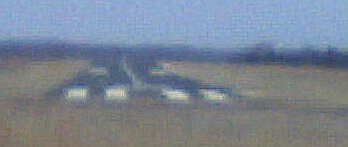

The runway, taken from the road coming into the airport.  Unfortunately, my phone didn't take a very good image.

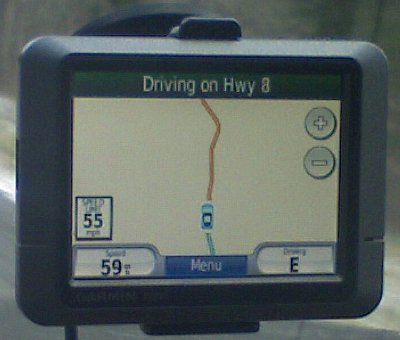

Sensor and amplifier technology has come a long way.  This is a screenshot of the GPS, I'm sitting inside on the couch sort of near a window, and it can still pick up enough satellites to keep a position lock.

So far I've noticed it's very good at knowing what the speed limit is, although it only changes a couple of seconds after you're in the new zone, so it's a good tool if you've lost track, but it doesn't give you any warning.

Oh, and as far my blog: posting images within the pivot software seems to work correctly.  I have lots to tweak still.  So far I haven't figured out a way to restore the images in all the old posts.


test post from directly in Pivot

2009 December 24 04:53

I guess everything's going to be in the introduction.

A picture of a map:

More text.

End of entry.

another image:




test post from directly in Pivot

2009 December 24 04:48

This is the introductionThis is in the body.  Woop Woop.
