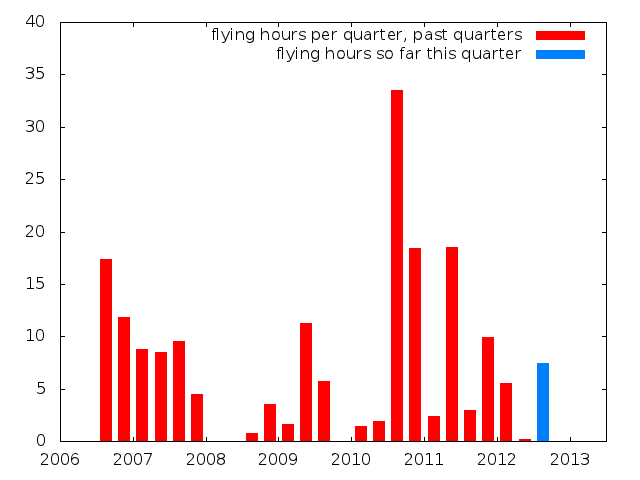

In that vein, I've plotted the number of hours of I've flown per quarter before. The last time I tried to generate a new version of that graph, I couldn't figure out the sequence of gnuplot commands to make the graph work right. I've found it again, so here's the up-to-the day current graph for my flying, and also the commands used to create it.



Here's the gnuplot session used to create that graph:

gnuplot> set xrange [2006:2013.5]
gnuplot> set yrange [*:40]
gnuplot> set boxwidth .15
gnuplot> plot './hours_flown_quarters.dat' with boxes fs solid title 'flying hours per quarter, past quarters', './hours_current_quarter.dat' with boxes fs solid lc 3 title 'flying hours so far this quarter'


The other kind of sump pump

2012 August 10 10:00

This is going to be a bit rambling, because I'm trying to tell about three stories at once and they all interlock. My apologies in advance.

The classic VW engine is a "wet sump" engine; that is, the oil pools in the bottom of the crank case. The opening in the bottom of the sump (see previous post) is covered by a sump plate, upon which rests an oil screen. When the plate is installed, the oil screen rests on top of it (out sight inside the oil sump). The screen is not a filter; it's just there in case some chunk of metal falls into the oil sump, it doesn't get sucked into the oil pump and jam the gears.

Since the engine doesn't have an oil filter by design, there's nothing to remove crud from the oil as in modern engines. In the case of old-fashioned oils, which were just oil, all the stuff would fall to the bottom of the crank case. With modern detergent oils, the dirt and impurities remain suspended in the oil, but any sludge and grid still ends up on the bottom of the crank case. The result in this engine is the same; a lot of stuff that you dont' want hanging around your engine ends up lying on the bottom of the engine (a lot of it ends up in the screen or on top of the sump plate.

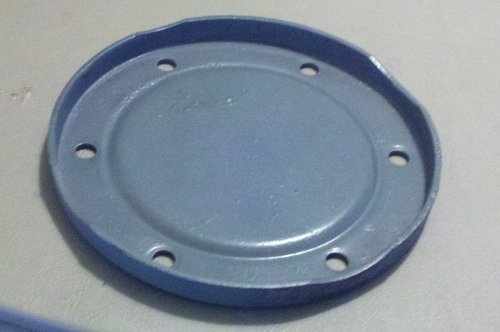

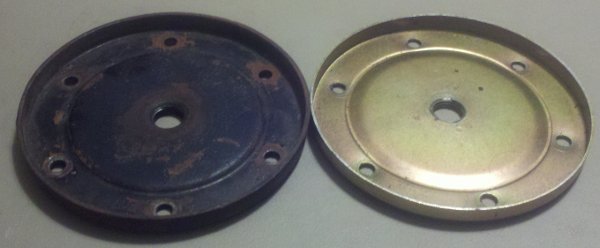

So now we come to the sump plate itself. Here are a couple of examples of them:

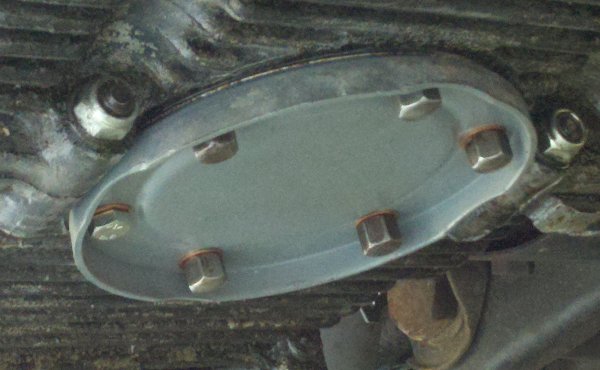

The six holes on the rim fit over the six studs that were discussed in the previous post. In the center is a threaded hole for the oil drain plug. The one on the left is probably an original, the one on the right is a recent aftermarket copy (it's made from much thinner steel but at least it doesn't have rust problems). When you install it, the screen goes in the sump, the plate goes on the studs (with proper gaskets), then the drain bolt goes in the center of the plate like so:

That's the background. My engine has always leaked oil. Like many engines put together not very well, it leaked oil from multiple places and so it's really hard to track down where. For the longest time, I've suspected that the oil sump is one of the places it's leaking from. There are at least two problems with the oil sump plate that was on the car when I got it (the shiny one above). One problem is that it's thin enough so that it's not entirely flat, so it doesn't seal entirely well against the oil sump itself. The second problem is that I wasn't able to get the oil drain bolt to seal entirely. This was because I couldn't put enough torque on it to seal properly.

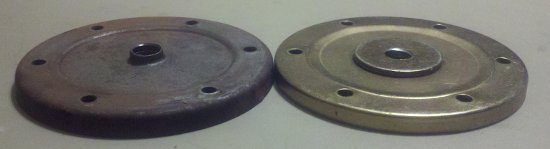

The sump plate is sheet metal, which is too thin to hold threads in a hole. The sump plates are thickened so that they will hold threads; here's the upper surface of both plates:

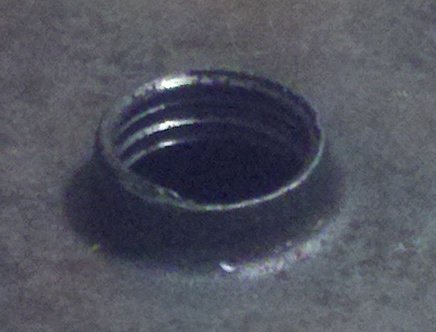

The new one has a plate welded to it in the center that allows a hole to be drilled and tapped for the oil drain bolt. The old one had the hole sort of extruded up from the sheet metal and the threads cut into the extrusion:

The aftermarket sump plates really don't have enough thread to be able to put enough torque on the oil drain bolt to seal well. I put as much torque as I felt I could on mine, even with a new (aftermarket) sump plate, and it still leaked slightly around the drain bolt. Later on in my working on the car, I got the plate on the left from a guy selling old VW parts. The threads might hold up to the torque, but the plate is rusty and not very flat, so I don't think it will solve the problem.

The proper procedure for changing the oil with a sump plate as above is as follows. You take the big oil drain bolt out of the center of the sump plate, the oil drains out. Then you remove the sump plate and oil screen, and CLEAN them (to remove the chunks of stuff that remain at the bottom of the oils sump--remember?). This is very important; there's potentially stuff in the screen and on the plate that you don't want to circulate back into your engine; the whole point is to have the engine filled with clean oil. If your engine is fairly healty and you change your oil frequently, it's probably Ok to only remove the sump plate every other oil change to clean it.

HOWEVER--at some point VW realized that people (owners or mechanics or both, I guess) were getting lazy about cleaning the filters. People were getting into the habit of draining the oil but not removing or cleaning the screens and sump plates at all. They'd just drain the oil, put the drain bolt back in, put fresh oil in, then go. This meant that sludge was getting into the engines and shortening their life. So I believe for the several years that VW was making engines, this is what the sump plates looked like:

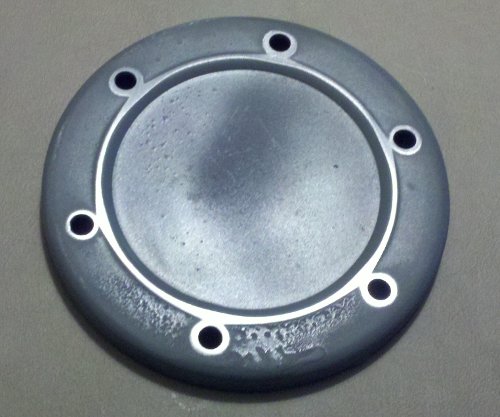

There's no drain bolt at all. The only way to get the oil out is to remove the plate and screen, so you have to take it out, and at that point you might as well clean them before you put them back in.

I got that plate a few years ago from yet another guy selling old VW stuff. Personally, don't much care about the oil drain bolt vs. not. However, this plate was the original thicker metal, and it's very very flat; flatter than any of the other sump plates I have. (That's good because it's likely to seal against the sump better.). To get it ready to install, I sanded the sleaing surface so that it was even flatter.

My plan had been to install that plate ASAP...but...as pointed out in the previous post, three of the studs were loose in my engine. So I was trying to take the sump plate out as little as possible (which might have gotten me into a bit of trouble; I'll talk about this in another post). I didn't want to go to the no-drain-plug plate, because that means I'd have to take the whole plate off for every oil change, and that would put more wear on the stud holes. However, a couple of weeks ago I got the stud problem fixed (previous post), so as of now, I'm on the oil drain system that the engine was probably equipped with in the first place:

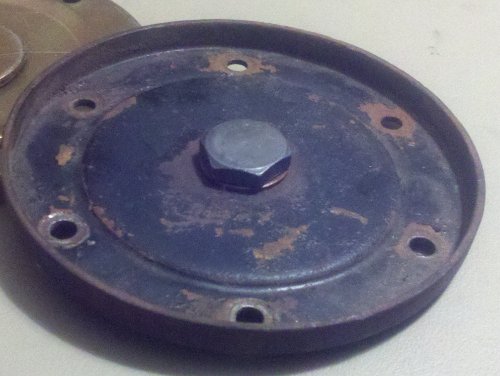

Sharp-eyed readers might notice that the last photo was actually taken before I fixed the studs; one of the cap screw on a stud is actually a bolt of the same thread size. You can tell by the depth of the head. The cap nuts that go on the studs are a full depth nut plus an entire cap that covers the end of the stud. The middle right on this photo is a oil sump cap nut:

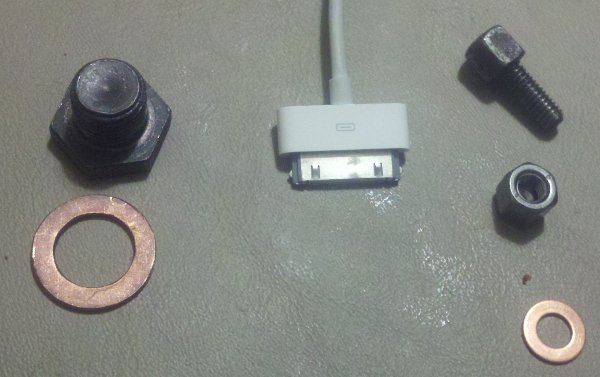

The upper right is a cap nut stick on a stud; that was one that had been holding my sump plate on. The lower right is a copper washer that is used to seal the cap nuts against the sump plate. On the left is a drain bolt and a copper sealing washer for it. (And in the middle is an iPhone connector for scale.)


Back to 6 for 6

2012 August 08 08:56

Owning a vintage car is like owning a (non-new) house. You always have a seemingly-infinite list of stuff that you need to fix that the previous owner left for you. My vintage Beetel is certainly no exception. One I've been ignoring until last week was the three oil sump plate studs not in place in the bottom of the engine.

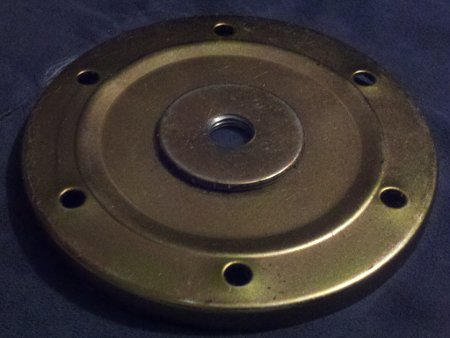

The bottom of the oil sump in the engine is a round hole that's covered with a plate like this when the engine is all together:

The six holes in its rim (should) slide over studs that stick out of the rim of the opening in the bottom of the engine. The hole in the center of the plate is where the oil drain plug goes.

The oil drain plug is removed to drain the oil. However, it's very important that every once in a while you remove the plate itself and the oil screen that goes on top of it, to remove debris and sludge that accumulates at the oil pickup point. More about this in a later post. The point is that it's important to be able to take this plate out periodically.

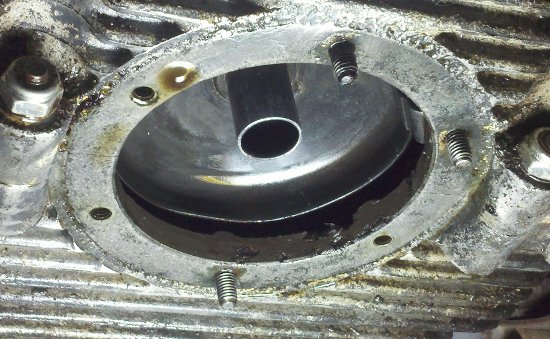

The problem with my car is shown here:

Three of the studs weren't fastened into the engine. You can't just have nothing there or oil won't stay in; so you instead attach the plate with studs with a cap nut on the end, or else a bolt of the same threads. The problem with doing it that way is that the studs are steel. They're designed to have (steel) nuts put on and taken off lots of times, so a steel stud sticking out of the engine is fine; the stud takes the wear. The engine case is made of magnesium alloy, which is fairly soft, and so repeatedly using the stud holdes as bolt holes, you'll eventually strip out the holes.

To get the studs to stay properly, you have to use a liquid called "lock tight". It's almost like a metal adhesive; it's like a cold weld. "Blue lock-tight" is a weaker weld, so you can remove the part later with tools. The problem with lock-tight is it won't work in the presence of other liquids; they must be dry. Unfortunately, the oil sump has oil in it (no surprise).

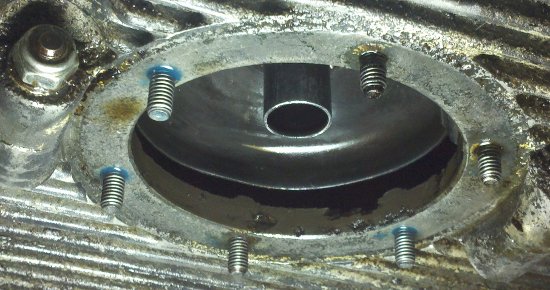

So last week I spent an evening under the car with paper towels and Q-tips cleaning out the stud holdes. I got as much oil out from in and above the holes as I could, then I used mineral spirits on the Q-tips in the holes to get the last of the oil dissolved. Then I lock-tighted three studs into the empty holdes, and Voi-la:

You can see the blue stuff around the bases of the newly installed studs. I'm happy to report that I was able to torque down the oil sump plate, and the studs stayed in place, so that's a big improvement on my vintage car.
